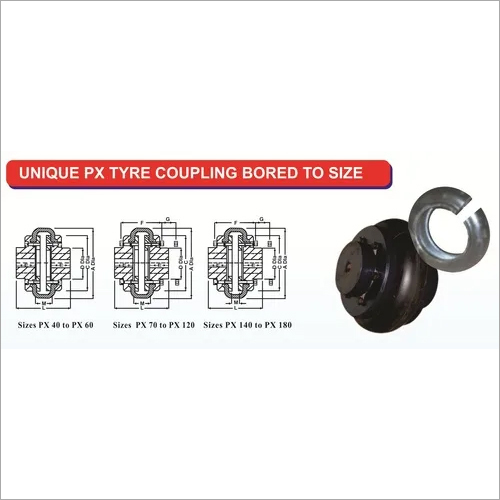

Unique PX Series Tyre Coupling

Product Description

Being a highly coveted organization in the respective domain, we manufacture, export and supply excellent quality Unique PX Series Tyre Coupling to our esteemed clients. Our diligent professionals manufacture this coupling by making use of optimum quality raw materials and contemporary techniques in compliance with the international quality standards. We offer this Unique PX Series Tyre Coupling in standard gamut covering torque rating up to 188 Kg M.

Features:

• Easy installation

• High strength

• Durable finish standards

• Robust construction

Specifications:

Size	Max Speed RPM	Rating			KW rating at common RPMs					Tor Stiff NM / deg	MAx Misalignment
		Torque			585	720	970	1440	2880		Ang deg	Parallel mm	Axial Mm
		Cont Nm	Max Nm	KW / 100 rpm
PX40 PX45 PX50	4500 4500 4500	21 37 53	64 110 160	0.22 0.39 0.56	1.3 2.3 3.3	1.6 2.8 4.0	2.1 3.8 5.4	3.2 5.6 8.0	6.3 11 16	5 9 13	4 4 4	1.1 1.2 1.3	1.3 1.5 1.47
PX60 PX70 PX80	4000 3600 3100	106 162 253	318 487 759	1.11 1.70 2.65	6.5 10 15	8.0 12 19	10.8 16.2 25.6	16 24 38	32 49 76	26 41 63	4 4 4	1.6 1.9 2.1	2.6 2.3 2.6
PX85 PX90 PX100	3000 2880 2600	305 365 505	915 1096 1517	3.20 3.82 5.29	19 22 31	23 28 38	31 38 51	46 55 76	92 110	76 91 126	4 4 4	2.2 2.4 2.6	2.8 3.0 3.3
PX110 PX120 PX140	2300 2050 1800	712 1182 1881	2137 3547 5642	7.46 12.4 19.7	44 73 115	54 89 142	73 120 191	107 178 284		178 296 470	4 4 4	2.9 3.2 3.7	3.7 4.0 4.6
PX160 PX180	1600 1450	3113 5485	9339 16455	32.6 57.5	191 336	235 410	316 557	469 827		778 1371	4 4	4.2 4.8	5.3 6.0

Precision Engineering for Reliable Performance

Each PX Series Tyre Coupling is meticulously crafted using advanced techniques to ensure a precise, well-balanced assembly. The flexible rubber tyre positioned between metal hubs absorbs shocks and compensates for minor misalignments, making these couplings particularly suitable for machines operating under variable loads and speeds.


Robust, Corrosion-Resistant Construction

Featuring a blackodised surface and made from corrosion-resistant materials, the PX Series Tyre Coupling is engineered for durability. Its oil and dust-resistant sealing, alongside a strong synthetic rubber tyre, ensures long service life even in challenging industrial environments.


Versatility Across Applications

With pilot bore or finished bore options up to 350 mm inner diameter and outer diameters up to 520 mm, this coupling is adaptable to various machinery. Its high torque capacity, up to 50000 Nm, and maximum speed of 4000 RPM, makes it suitable for an extensive range of power transmission applications in industries across India.
